Every year, thousands of electronic devices fail prematurely — not because of manufacturing defects, but due to uncontrolled temperature and humidity. From outdoor projector enclosures and communication cabinets to EV chargers and digital signage, equipment faces constant environmental stress. Heat, cold, rain, and condensation can quickly damage sensitive electronics and reduce system reliability.
A simple metal box is not enough. You need an intelligent temperature and humidity control board. This article explains why.
The Hidden Threats: Heat, Cold, and Moisture
Heat – The Silent Accelerator
Electronic components age faster as temperature rises. A common rule of thumb: for every 10°C above 25°C, the failure rate doubles.
- Projector lamps and LEDs lose brightness.
- Power supplies overheat and shut down.
- Electrolytic capacitors dry out, causing ripple and instability.
Without active cooling, an enclosure under direct sunlight can reach 50–60°C – well above the safe operating range of most electronics.
Cold – The Unexpected Stopper
Cold is not as obvious as heat, but it is just as damaging.
- Lubricants in fans and mechanical parts thicken, preventing startup.
- LCD displays become slow or black.
- Some power supplies fail to start below 0°C.
When a remote monitoring station fails to wake up on a winter morning, a simple lack of heating is often the cause.
Humidity – The Condensation Killer
Humidity itself is not the main problem –condensationis. When warm, moist air meets a cold surface (for example, during the night-to-morning transition), water droplets form. Condensation causes:
- Short circuits on circuit boards.
- Corrosion of connectors and metal parts.
- Lens fogging in projectors and cameras.
Even a well‑sealed enclosure can suffer internal condensation if the temperature swings rapidly.

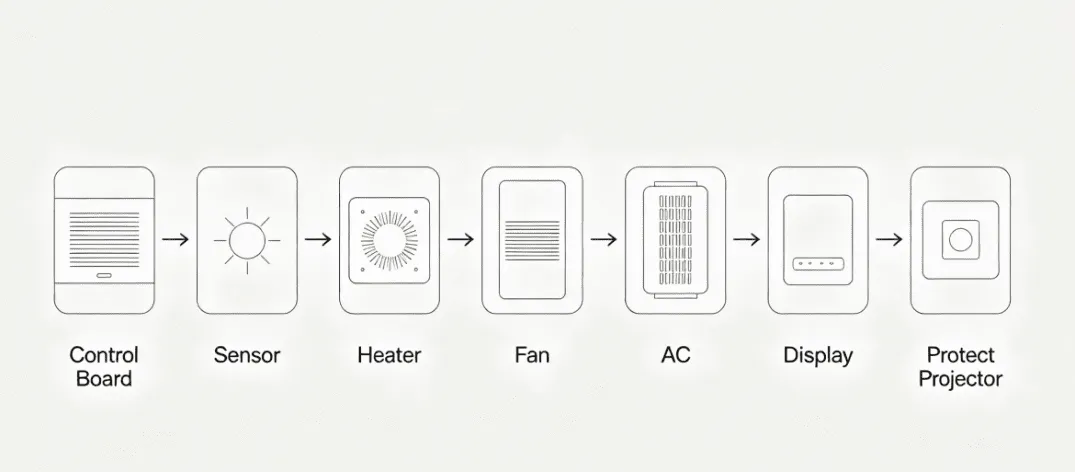

How a Smart Temp & Humidity Control Board Solves These Problems
A basic thermostat turns a heater or fan on/off at fixed thresholds. That works for simple applications but creates temperature swings(hysteresis) – the temperature bounces up and down, stressing components.
Asmart control boarddoes much more:
| Function | What It Does | Benefit |
| Temperature detection | Reads internal temperature accurately | Knows exactly when to act |
| Humidity detection | Monitors moisture level | Prevents condensation before it forms |
| Constant control | Smoothly regulates heating/cooling | Maintains stable environment, no swings |
| Fan speed control | Adjusts fan speed based on demand | Saves energy, reduces dust and noise |
| High/low temp protection | Shuts down equipment at dangerous limits | Prevents permanent damage |
| Local display | Shows real‑time temperature and humidity | Easy to check at a glance |
Where a Control Board Is Essential
| Application | Why You Need It |
| Projector constant temperature cabinet | Prevents lens fogging, maintains focus, enables cold start |
| Base station communication equipment | 24/7 reliability, RF stability, condensation prevention |
| EV charging station (internal electronics) | Handles wide outdoor temperature swings, protects charger controller |
| Outdoor digital signage | Keeps LCD panel safe from heat and cold |
| Burn‑in / aging test racks | Maintains precise chamber conditions for consistent testing |
What to Look for in a Control Board
When choosing a temperature and humidity control board, check for:
- Both temperature and humidity sensing– not just temperature.
- Constant (PID or proportional) control– not simple on/off.
- Fan speed regulation– to save energy and reduce dust.
- High/low temperature power‑off protection– as a safety backup.
- Clear local display– for quick troubleshooting.
- Reliable power supply– typically 12–24V DC or 110–240V AC.
Common Mistakes to Avoid
- Using only a thermostat– no humidity control, so condensation still occurs.
- No fan speed control– fans run 100% all the time, wasting energy and pulling in dirt.
- Ignoring cold protection– equipment fails to start on freezing mornings.
- Placing the sensor incorrectly– reading near a heater or vent, not the true internal environment.
Conclusion
A temperature and humidity control board is not an expensive luxury – it is a cost‑effective investment that prevents downtime, extends equipment life, and reduces maintenance headaches. By actively maintaining a stable internal climate, it turns a simple enclosure into a protected home for your valuable electronics.
For reliable smart temperature and humidity control boards– with constant regulation, fan speed control, high/low temperature protection, and local display –Shenzhen ShiRui Display Equipment Co., Ltd.offers standard and customizable solutions. Suitable for projector cabinets, base stations, EV chargers, outdoor signage, burn‑in equipment, and more. Contact us for a free selection guide and sample testing.
