A smart outdoor projector enclosure contains four core systems: environmental sensing , housing with AR-coated optical window (>98% transmittance, IP65), climate control (400W PTC heating + fan or AC cooling), and intelligent power supply with RS485 remote monitoring.
Introduction

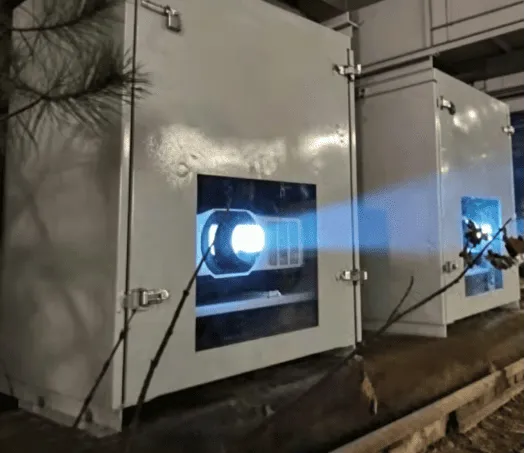

Outdoor projectors face extreme challenges: direct sunlight, high humidity, dust, salt fog, and wide temperature swings. These conditions often cause lens fogging, circuit board corrosion, and premature failure. A professional constant temperature enclosure integrates standardized components to provide temperature control, dehumidification, and dust/water protection.
Three mainstream enclosure types are available:
- Fan-cooled
- Fan + air conditioner hybrid
- Fully sealed internal circulation (fanless / AC only)
All share four core systems: environmental sensing, housing & optical window, temperature/humidity control, and intelligent power supply. Most components are identical across types – only the cooling hardware differs.
Selection Guide:
- Fan-cooled→ Suitable for projectorsunder 8000 lumens
- AC-equipped models(hybrid & sealed circulation) → Recommended for projectorsabove 8000 lumens(higher heat dissipation required)
1. Environmental Sensing Components – The Perception Hub
All three enclosure types come standard with temperature/humidity sensors. Water ingress and smoke sensors are optional but highly recommended.
- Temperature & Humidity Probe– Real-time monitoring. When internal temp<5°Cand humidity>90%, heating starts. When temp>10°Cand humidity<65%, heating stops.25°Cis the typical cooling activation threshold, based on standard projector operating range (5°C–35°C).
- Water Ingress Sensor– Triggers power cut-off if water leaks into the enclosure, preventing projector damage. Usually installed at the lowest point of the enclosure for early detection.
- Smoke Sensor– Detects short circuits or fire risks. Instantly cuts power to enhance safety, especially for unattended night projection sites.

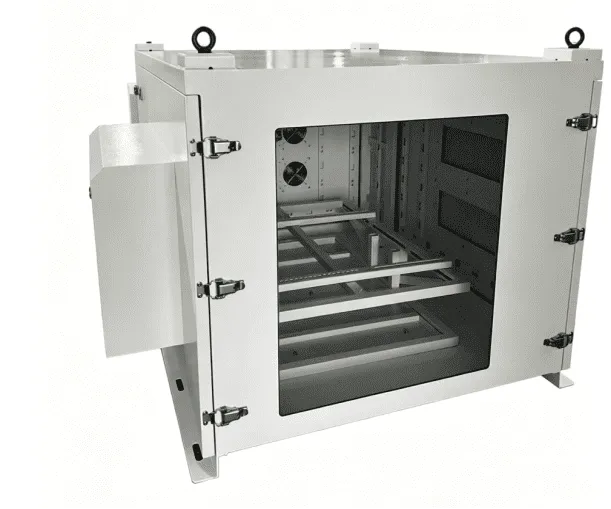

2. Housing & Optical Window – Physical Protection
The enclosure housing is the first line of defense against outdoor environments.
Enclosure Shell Materials:
- Available ingalvanized steel,stainless steel (304 recommended for coastal areas), oraluminum alloy
- Thickness:1.2mm – 3.0mm
- Surface treatment: Electrostatic anti-rust coating + high-temperature baking – no peeling, no cracking
Optical Window:
- Ultra-white optical glasswith standard transmittance>95%
- OptionalAR (Anti-Reflective) coatingincreases transmittance to>98%by reducing surface reflection
- Eliminates mirror-like glare from ambient light, ensuring clear projection images
- Resists fogging when combined with the dehumidification module
Protection Rating:
- IP65 rating: fully dust-tight + protected against water jets
- Fan-cooled and hybrid types have ventilation openings with dustproof filters
- Sealed internal circulation type hasno openings– completely airtight
Adjustable Mounting Base:
- Screw-rod mechanism with±30° vertical tiltand±15° horizontal rotation
- Pull-out design available for easy projector maintenance – especially valuable for high-altitude installations
3. Temperature & Humidity Control Components – Core Cooling System
3.1 Common Components (All Types)
400W Heating & Dehumidification Module– Standard on all enclosures. Uses PTC ceramic heating elements – fast warm-up, even surface temperature, no open flame. Ideal for seaside, forest, and underground environments.

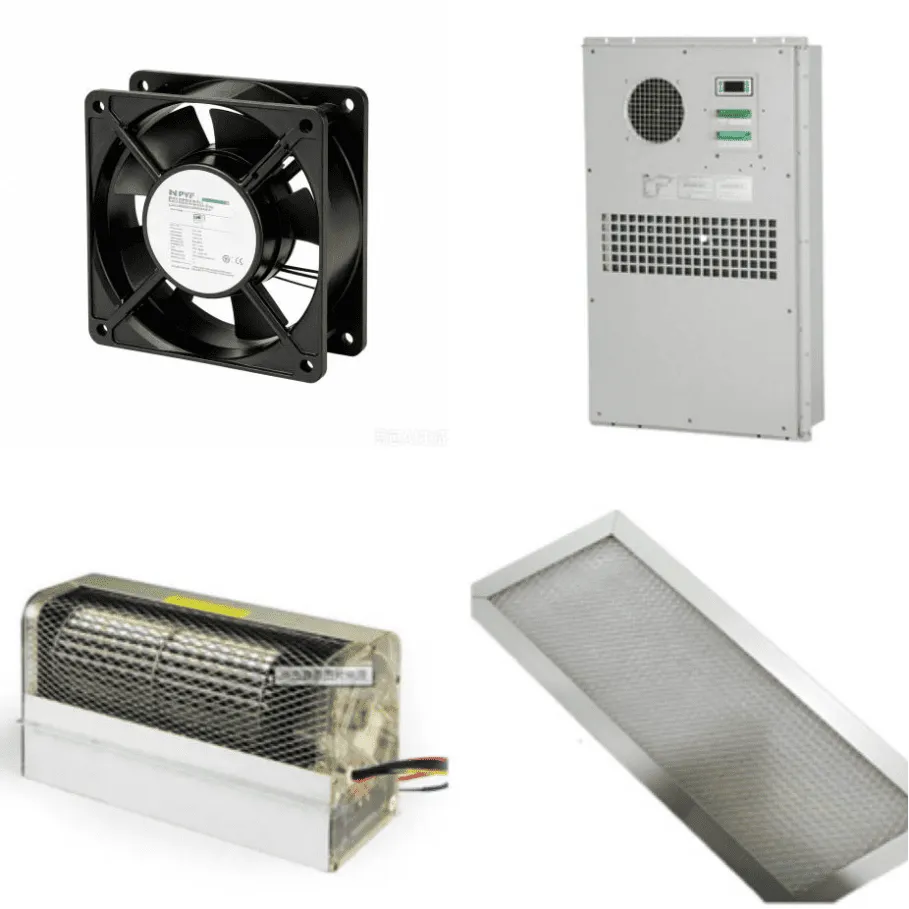

3.2 Cooling Hardware – Key Differentiator by Type
1. Fan-Cooled Type – For Projectors Under 8000 Lumens
Features intake/exhaust vents withF6-grade dustproof filter sponge. Fans activate above 25°C, speed varies with temperature, stop when temp drops below 25°C. Filter replacement recommended every3–6 months. Cost-effective solution with limited cooling capacity – suitable for projectorsunder 8000 lumensin parks, urban lighting, and standard outdoor venues.
2. Fan + AC Hybrid Type – For Projectors Above 8000 Lumens
Fan operates first. When temperature continues rising beyond fan capacity, industrial AC automatically activates. Typical logic:
- Temperature >25°C → fan starts
- Temperature >30°C and fan insufficient → AC engages
- Temperature falls below 25°C → AC stops
Balanced solution for projectorsabove 8000 lumensin hot, humid southern regions and live performance venues.
3. 3 Sealed Internal Circulation Type – For Projectors Above 8000 Lumens
Fully sealed housing with no intake/exhaust openings. Industrial AC provides internal air circulation only – completely isolated from outside air. AC cooling capacity is typically 1.5–2x projector power consumption, ensuring stable operation at 50°C ambient temperature. Designed for projectors above 8000 lumens in deserts, coastal salt fog zones, and dusty subway stations.
4. Intelligent Control & Power Supply System

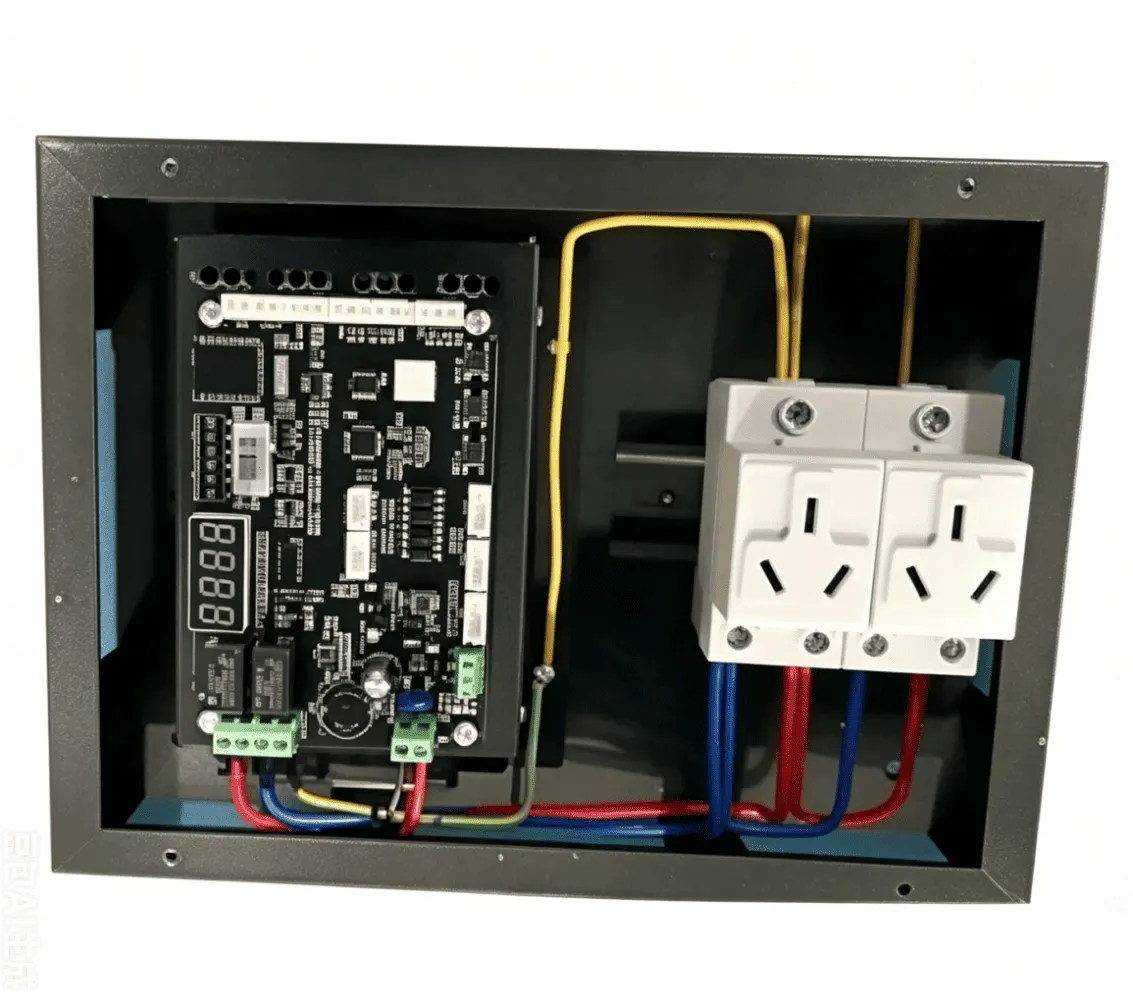

- Main Control Board– Processes sensor data, controls heating, fans, and AC. Customizable temperature/humidity thresholds.RS232/RS485 interfacesupports remote monitoring via central control systems. Built-in hardware watchdog prevents system lockup.
- Regulated Power Supply– Stabilized switching power supply with AC contactor. Auto power-off on short circuit or overload to protect projector. Supports two-phase input (1mm² cable ≈ 1400W).
Automatic Protection Mechanisms
When sensors detect abnormalities, the system responds automatically:
| Condition | System Response |
| Overheating | Activate fan → Activate AC → Send alert if still overheating |
| Water ingress | Instant power cut + audible/visual alarm |
| Smoke detection | Immediate power cut to prevent fire |
Application Selection Guide
| Projector Brightness | Environment | Recommended Type |
| Under 8000 lumens | Parks, urban lighting, standard outdoor | Fan-cooled |
| Above 8000 lumens | Hot, humid regions, live shows | Fan + AC hybrid |
| Above 8000 lumens | Coastal, desert, subway, high-dust zones | Sealed internal circulation (fanless) |
Frequently Asked Questions (FAQ)
Q1: What is the main difference between the three enclosure types?
A1: Cooling hardware. Fan-cooled uses fans; hybrid uses fans + AC; sealed internal circulation uses AC only (no vents).
Q2: What does the heating module do?
A2: Dehumidifies and removes fog in cold, humid conditions – prevents glass condensation and moisture damage.
Q3: Can the control board be remotely monitored?
A3: Yes. Standard RS485/232 interface supports remote temperature/humidity monitoring.
Q4: How often should the dust filter sponge be replaced?
A4: Every 3–6 months, depending on dust levels. Replace more frequently in heavily polluted environments.
Q5: What is the benefit of AR coating on the optical glass?
A5: AR (Anti-Reflective) coating reduces surface reflection, increasing transmittance from 95% to over 98%. It also eliminates glare from ambient light, ensuring a clear projection image.
Q6: Why are AC models recommended for projectors above 8000 lumens?
A6: Higher lumen projectors generate significantly more heat. Fan-cooling alone is insufficient for stable long-term operation in high ambient temperatures. AC provides active cooling to maintain optimal operating conditions.
