Outdoor projector enclosures for sports stadiums and arenas protect high-lumen projectors from rain, dust, heat, and vandalism during live events. Key requirements include IP65 sealing, active temperature control for 20,000+ lumen projectors, anti-theft security, shatterproof glass, and remote monitoring to ensure zero downtime during games.
Why Stadiums Need Specialized Projector Enclosures
Sports stadiums and arenas use projectors for field mapping, advertising, replay screens, halftime shows, and immersive fan experiences. These projectors are often high-lumen models (20,000–40,000 lumens) costing $15,000–$80,000 each. A single projector failure during a live game can mean lost advertising revenue, disappointed fans, and emergency replacement costs.
Unlike commercial or residential installations, stadium projectors operate in challenging conditions:
- Exposed to weather — rain, snow, dust, and temperature extremes
- High heat output — 20,000+ lumen projectors generate 2,000–5,000 watts of heat
- Security risks — expensive equipment in publicly accessible areas
- Zero downtime tolerance — games and events cannot wait for repairs
- Long operating hours — 8+ hours per event day, sometimes 7 days a week
A standard outdoor enclosure may not meet these demands. Stadium-grade enclosures require enhanced cooling, security, and monitoring.
1. Weather Protection: IP65 as Minimum
Stadiums are open-air or semi-open environments. Enclosures must protect against:
- Heavy rain during games (IP65 protects against water jets from any direction)
- Dust and dirt from the field, track, or parking areas (IP6X = dust-tight)
- Snow and ice in winter stadiums
- Humidity — especially in indoor arenas with pool areas or ice rinks
Recommendation: IP65 is the minimum for stadium installations. For coastal stadiums or areas with pressure washing, upgrade to IP66. Ensure all cable entry points use sealed glands rated to the same IP level—the enclosure is only as waterproof as its weakest point.
2. Thermal Management for High-Lumen Projectors
High-lumen projectors generate enormous heat. A 30,000-lumen laser projector can consume 3,000–4,000 watts, much of which becomes heat inside the enclosure. Without proper cooling:
- Projector overheats and shuts down mid-game
- Color accuracy drifts as internal temperature rises
- Lamp/laser life is reduced by 30–50%
- Optical components degrade faster
Stadium cooling solutions:
- Multi-fan forced air — 3–4 high-CFM fans
with PWM speed control
- Active air conditioning — for stadiums in hot climates (ambient >35°C) or projectors >30,000 lumens
- Heat pipe / heat exchanger — for sealed enclosures where filtered air cannot enter
- Thermostatic control — variable fan speed based on internal temperature, reducing noise and energy use when cooling demand is low
Critical: Size the cooling system for the worst-case scenario—full sun load + maximum projector output + highest ambient temperature. Do not size for average conditions.
3. Security & Vandalism Protection
Stadium projectors are expensive and often mounted in areas accessible to the public or maintenance staff. Security features include:
- Lockable doors — high-security locks, not standard cabinet latches
- Tamper-proof screws — security Torx or hex screws on exterior panels
- Shatterproof glass — laminated or tempered glass that does not shatter into dangerous shards if hit by a ball or vandal
- Steel gauge — minimum 1.5mm galvanized steel or 2mm aluminum for structural integrity
- Alarm contacts — door-open alarm that integrates with stadium security systems
- Mounting security — anti-theft mounting brackets with locked hardware
4. Optical Clarity for Large Venues
Stadium projections cover large surfaces—field turf, arena floors, building facades. The enclosure window must not degrade image quality:
- Low-iron ultra-clear glass — ≥93% light transmission, no green tint
- Anti-reflective (AR) coating — reduces reflection from stadium lights and sun
- Hydrophobic coating — water beads and runs off, maintaining clarity during rain
- Thermally tempered — withstands temperature shock and impact
- Easy-clean surface — reduces dust and dirt buildup, lowers maintenance frequency
Avoid acrylic windows for stadium use—they scratch easily, yellow under UV exposure within 2–3 years, and cannot be cleaned with standard glass cleaners.
5. Remote Monitoring & Predictive Maintenance
Stadium technicians cannot climb onto rooftops or catwalks during a game to check projector status. Remote monitoring is essential:
- Temperature and humidity sensors — real-time internal environment monitoring
- Fan status and RPM — detect fan failure before overheating occurs
- Door-open alarm — alert security if enclosure is accessed without authorization
- Power status — monitor power supply and projector power state
- Network connectivity — Ethernet or 4G connection to stadium network
- Alert system — email/SMS alerts for temperature thresholds, fan failure, door open
- Data logging — historical temperature data for predictive maintenance
Predictive maintenance uses trend data to identify issues before they cause failure—for example, gradually rising internal temperatures may indicate a clogged filter or failing fan, allowing maintenance during a non-event day.
Typical Stadium Installation Scenarios
| Scenario | Projector Type | Enclosure Requirements | Mounting |
| Field mapping (football/soccer) | 20,000–40,000 lm laser | IP65, AC cooling, shatterproof glass, remote monitoring | Catwalk or rooftop, 20–50m distance |

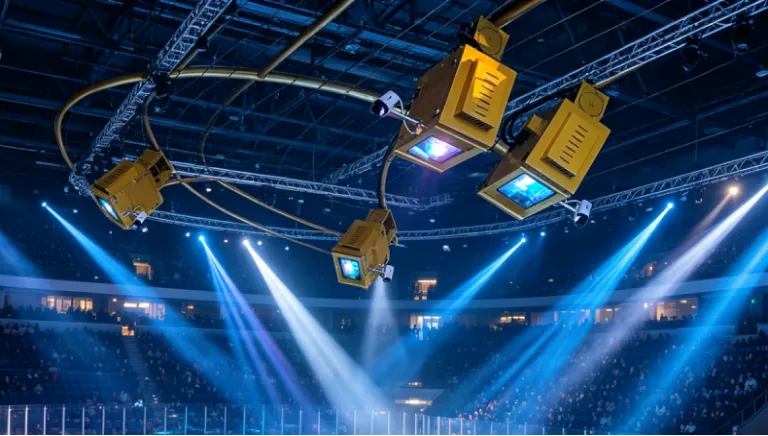

| Arena floor projection (basketball/hockey) | 15,000–30,000 lm laser | IP54 (indoor arena), fan cooling, low-profile | Ceiling or catwalk, 15–30m distance |
| Perimeter advertising | 5,000–12,000 lm | IP65, fan cooling, compact size | Under-catwalk or wall mount |

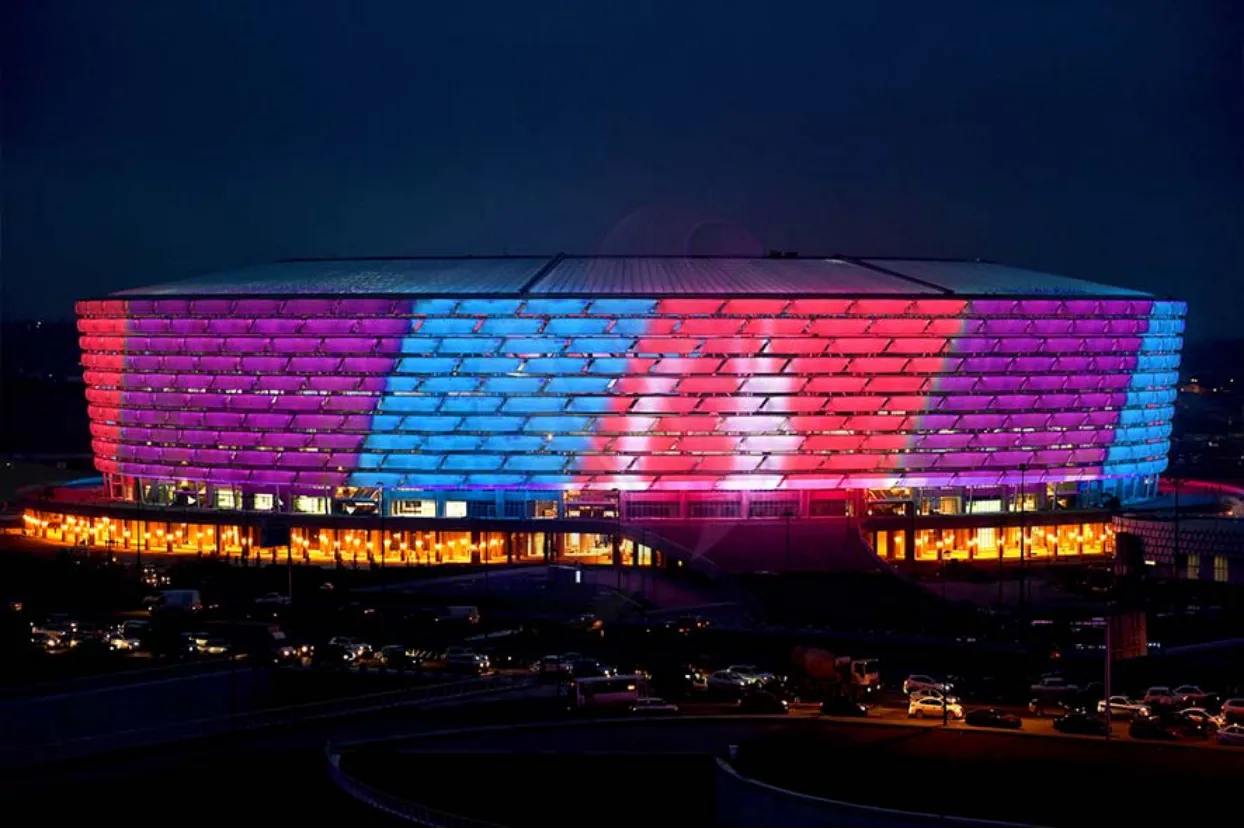

| Building facade mapping | 30,000–40,000 lm | IP66, AC cooling, security lock, remote monitoring | Ground-based or rooftop, 50–100m distance |
| Replay screen augmentation | 10,000–20,000 lm | IP65, fan cooling, AR glass | Near screen, 5–15m distance |
What to Look for in a Stadium Enclosure Supplier
When evaluating suppliers for stadium projects:
- High-lumen experience — ask for case studies with 20,000+ lumen projectors
- Thermal engineering capability — CFD simulation and thermal testing for high-heat projectors
- Custom mounting — ability to design custom brackets for catwalks, rooftops, or walls
- Security features — standard or optional security locks, tamper screws, alarm contacts
- Remote monitoring — built-in or optional IoT monitoring system
- Quick delivery — stadium projects often have tight deadlines before season opener
- On-site support — technical support during installation and commissioning
Conclusion
Stadium and arena projector enclosures are not standard off-the-shelf products. They require enhanced cooling for high-lumen projectors, robust security for expensive equipment, optical clarity for large-venue projection, and remote monitoring for zero-downtime operation. Investing in a stadium-grade enclosure protects your projector investment and ensures reliable performance during every game and event.
At Shirui, we design and manufacture custom outdoor projector enclosures for sports stadiums and arenas worldwide. Our IP65 enclosures support 5,000–40,000 lumen projectors, feature multi-fan PWM cooling with optional AC, shatterproof low-iron glass, security locks, and optional IoT remote monitoring. Contact our engineering team with your projector model and stadium layout for a custom enclosure solution.
