To ensure the stability of outdoor LED billboards or traffic displays against voltage sags and overheating, select a dedicated power supply by matching the output voltage (typically 4.5V/5V), adding a 20-30% power margin, and ensuring high efficiency (≥88%), wide operating temperature (-20°C to +50°C), and essential protections (OCP/OVP/OTP).
- – Flickering, distortion, or local blackout.
- – Damage to driver ICs or LED chips.
- – Shortened product lifespan and skyrocketing maintenance costs.
Outdoor environments are particularly challenging: wide voltage fluctuations, lightning surges, high temperature, and humidity demand far more from a power supply than indoor applications. Choosing a reliable LED‑dedicated power supply is the first step to ensuring long‑term stable operation of your display.

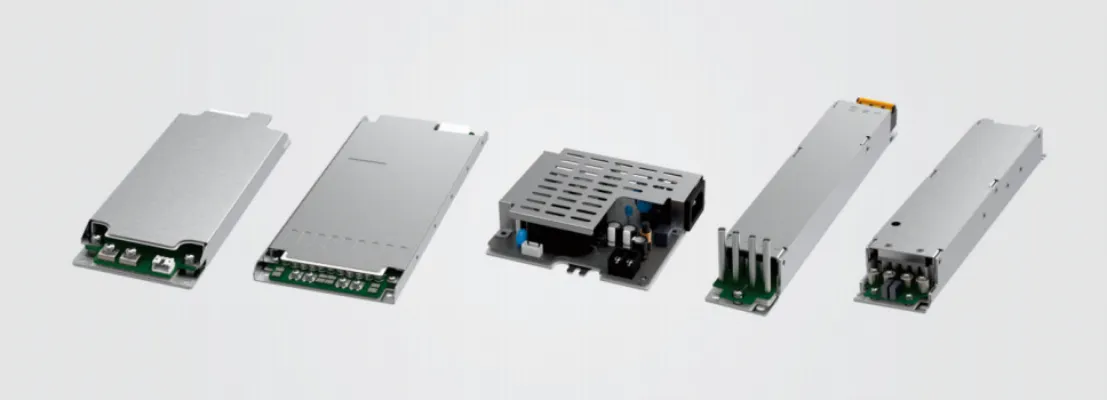

Key Technical Specifications of LED Display Power Supplies
1. Output Voltage and Current Matching
LED modules typically require low voltage and high current, common ratings being 4.5V/40A or 5V/40A. The rated output power must cover the peak power consumption of the entire screen plus a 20‑30% margin.
2. Wide Input Voltage Range
Outdoor grids are unstable. A good power supply should support 180‑264Vac or even wider (e.g., 90‑264Vac) to maintain normal operation during voltage sags and surges.
3. Conversion Efficiency
High efficiency means less heat, higher reliability, and lower electricity bills. A typical high‑efficiency LED power supply achieves ≥88% efficiency, generating little heat – some models can work without a fan, making them ideal for dust‑ and water‑resistant outdoor enclosures.
4. Protection Features
Short‑circuit protection (SCP), over‑current protection (OCP), over‑voltage protection (OVP), and over‑temperature protection (OTP) – these are essential for any outdoor power supply. Missing any protection risks burning the whole screen if an LED short or overheating occurs.
5. Operating Temperature Range
Outdoor temperature variations are extreme. A power supply must deliver full load from -20°C to +50°C or wider to handle everything from northern winters to southern summers.
6. Safety Certifications
Domestic projects require CCC; exporting to the EU needs CE; North America requires UL, etc. Certified power supplies are the foundation of project acceptance and safety compliance.
Comparison of Key Specifications
| Parameter | Basic Grade | Recommended Grade | Remarks |
| Output voltage | 4.5V / 5V | 4.5V / 5V | Choose by LED forward voltage |
| Output current | 30A~40A | 40A~60A | Power margin ≥30% |
| Input voltage range | 180~264Vac | 90~264Vac | Wide range better for grid fluctuation |
| Efficiency | ≥85% | ≥88% | Every +1% efficiency reduces temp ~2°C |
| Protections | OCP/OVP/SCP | OCP/OVP/SCP/OTP | OTP adds safety |
| Operating temperature | -10°C~+45°C | -20°C~+50°C | Outdoor requires wide temperature |
| Cooling method | Forced air | Natural / fanless | Fanless improves dust/water resistance |
| Safety certification | CCC | CCC+CE | Export needs CE/UL |
Selection Guide by Application
| Application | Recommended Power/Spec | Key Requirements |
| Outdoor billboard (P3/P4) | 200W~300W, 4.5V/40A | Wide temp, fanless, surge protection |
| Traffic guidance screen | 150W~200W, 5V/30A | High reliability, wide input |
| Indoor rental screen | 200W, 4.5V/40A | Compact, shockresistant |
| Finepitch LED (P1.2) | 150W, 4.5V/30A | Low ripple, low EMI |
Three‑Step Quick Selection
| Step | Action | Notes |
| 1 | Calculate total power | Module power × qty × 1.3 |
| 2 | Determine environment | Outdoor: wide temp, IP protection, fanless; indoor: fan cooling acceptable |
| 3 | Check certifications | CCC for China; CE/UL/KC for export |
Typical Applications

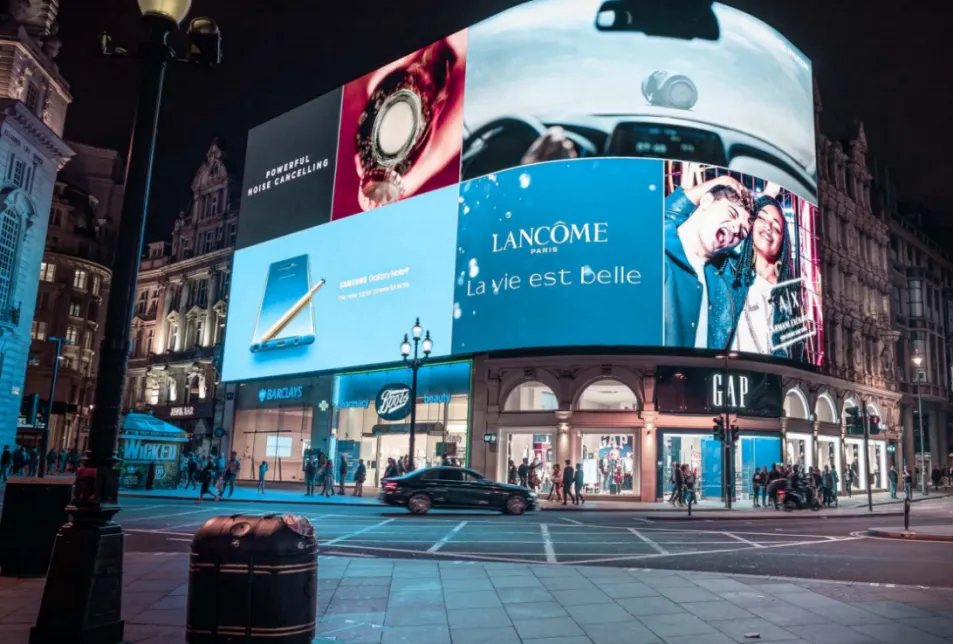

- Outdoor LED billboards: High brightness, long hours – require high efficiency, heat resistance, good ingress protection.
- Traffic guidance screens: Must work 24/7 in rain, heat, cold, and extreme weather.
- Indoor LED displays: Low EMI and low noise – fanless high‑efficiency designs are preferred.
- Rental / mobile screens: Frequent transport and installation – need compact, vibration‑resistant construction.
Conclusion
Choosing the right power supply wins half the battle for your LED display. Pay attention to voltage/current matching, wide input range, high efficiency, complete protections, wide operating temperature, and safety certifications – all significantly improve overall reliability and reduce long‑term maintenance costs.
ShiRui offers a wide range of power supply models and customization services, suitable for outdoor billboards, traffic guidance screens, and indoor displays.
