Outdoor projectors face rain, dust, and extreme heat. An intelligent temperature control system protects them via a “sense-decide-execute” loop. Sensors monitor internal temperature/humidity; the T230 control board triggers fans, AC cooling, or heating as needed. This ensures stable operation, prevents condensation, and extends equipment life.
1. Precision “Nerve Endings”: Multi-Dimensional Environmental Sensing
The prerequisite for intelligent temperature control is accurate perception. Our enclosures are equipped with high-precision temperature sensors and humidity sensors, forming the “sensory nerves” of the entire system. They monitor real-time temperature and humidity changes inside the enclosure and convert physical signals into electrical signals transmitted to the intelligent control motherboard.
It is particularly noteworthy that the system does not focus on a single value. Instead, it makes judgments based on preset linkage logic. For example, when the internal temperaturedrops below 5°C and humidity exceeds 90%, the equipment faces the risk of condensation due to low temperature and high humidity. When temperatures continue to rise, the system activates different cooling tiers. This multi-dimensional “sensing” capability forms the scientific basis for all subsequent protective actions.
2. Intelligent “Decision-Making Brain”: Hierarchical Control Logic

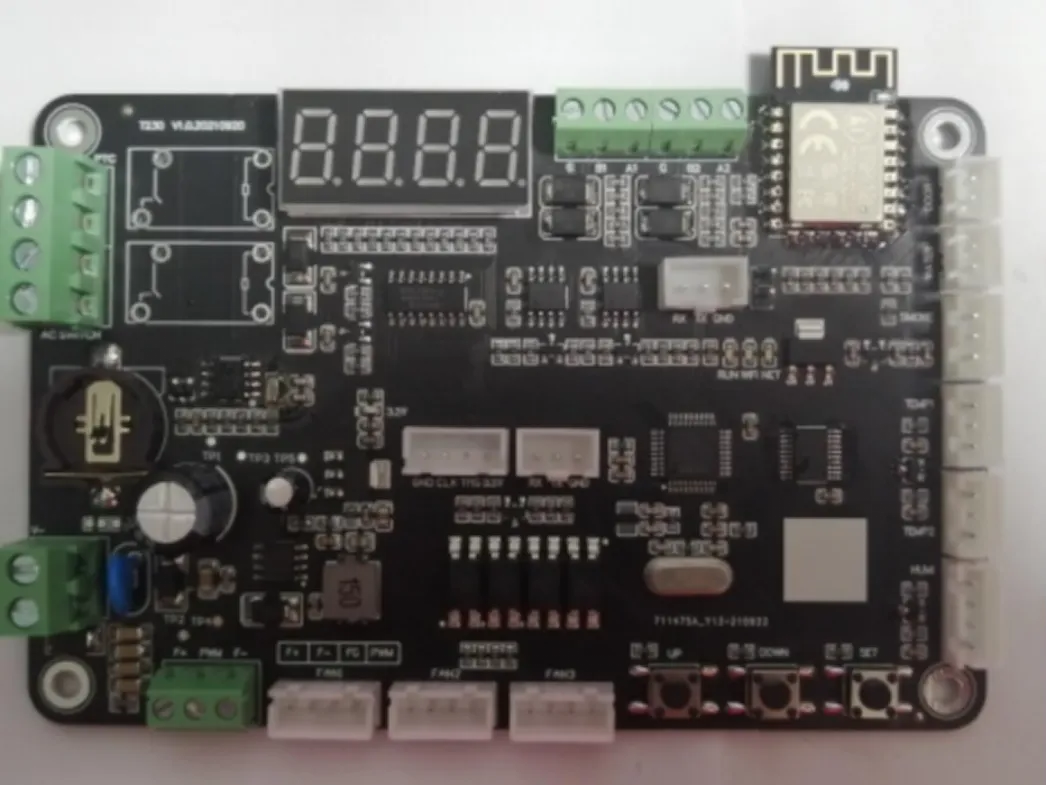

After collecting data, the T230 intelligent control motherboard, as the system core, executes a hierarchical control strategy based on built-in algorithms. Based on our product specifications, we have outlined the clear temperature control logic in the table below:
| Environmental Conditions | System Response (Execution Action) | Protection Purpose |
| Low Temperature & High Humidity(≤5°C, ≥90% RH) | Activate heating module(400W); stop when temperature rises to 10°C and humidity drops to 75% | Prevent optical window condensation and internal water accumulation; protect circuits |
| Optimal Temperature Range(5°C~25°C) | Neither heating nor air conditioning cooling operates; only standby monitoring is maintained | Maintain optimal standby status; conserve energy |
| Temperature Rise(>25°C) | Fan starts first, speed increases linearly with temperature | Prioritize energy-saving, low-noise active air cooling |
| Insufficient Fan Cooling(temperature continues to rise) | Temperature sensor feedback triggersair conditioning cooling system intervention | Activate powerful cooling to force temperature reduction and ensure core component safety |
| System Fault or Overheating | AC contactor in power module trips immediately, cutting off projector power supply | Hardware-level emergency protection to prevent permanent equipment damage |
This logic embodies atiered and redundantprotection philosophy: first employing low-power air cooling, then activating high-power air conditioning cooling if temperature rise cannot be suppressed, and finally using power cutoff as the ultimate protective measure.
3. Reliable “Execution Team”: Diverse Temperature Control Modules
Decisions require a robust execution layer. Our enclosures integrate three major temperature control execution modules, each performing its own function:
- High-Efficiency Fan Cooling System: As the first line of defense, the fan group (some models equipped with three fans) is responsible for forced air convection. Its intelligence lies inspeed dynamically changing with temperature, balancing cooling and noise control. The air inlet is equipped with anF6-class high-efficiency dust filterand achieves an IP65 protection rating, ensuring heat dissipation while isolating external sand, dust, and insects.

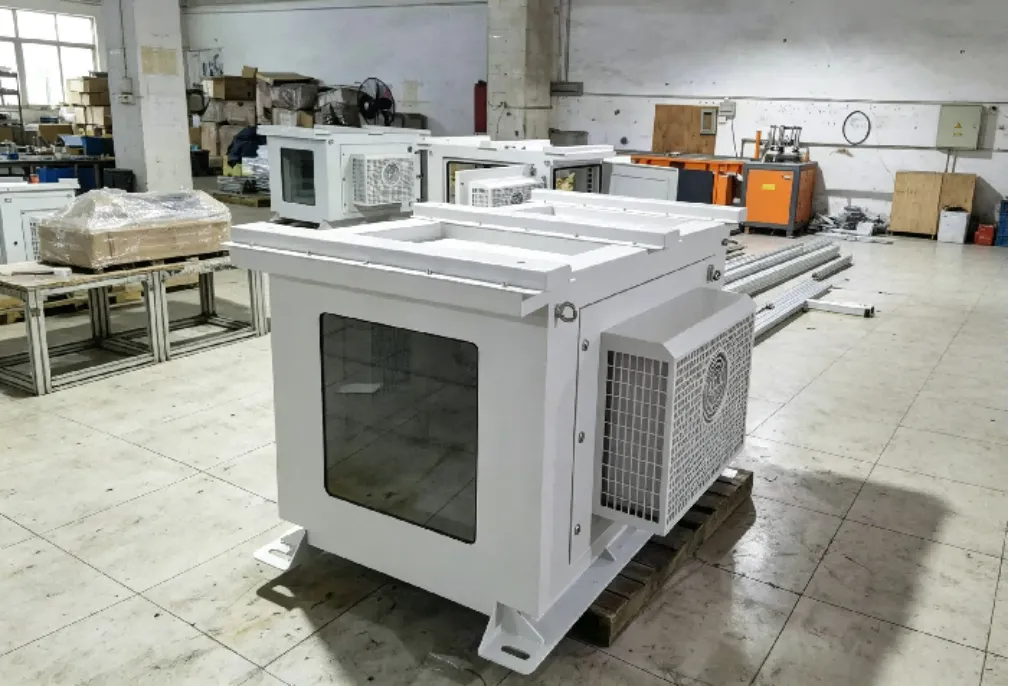

- Industrial-Grade Air Conditioning Cooling System: When fans cannot meet cooling demands, the internal circulation air conditioner activates for forced cooling. In thefully sealed model (internal circulation air conditioning type), the enclosure has no air inlet or outlet, is completely sealed, and is particularly suitable for harsh environments such as subways, seaside areas, and locations with strong sandstorms and high salt fog.
- Intelligent Heating and Dehumidification Module: For cold or humid environments, the400W heating moduleactively works. This is not only for warming but also critically formaintaining internal dryness, preventing projector window glass from fogging or condensing water, and ensuring a clear projected image.
Additionally, the enclosure body is made of1.2/1.5/2.0/3.0mm high-quality galvanized plateswith an electrostatic spray coating cured at high temperatures, providing long-lasting corrosion and rust resistance. This passive protection forms a stable foundation for the active temperature control system.
4. Real-World Outdoor Case Study: Night Light Show at a Southern Wetland Park
Let’s examine a real-world case to intuitively understand the combat capability of this temperature control system.Project Location: A wetland park in a coastal city in southern China. The park hosts a large-scale nighttime water light show, with a high-brightness engineering projector as the core device, installed inside a protective enclosure by the lake.
Environmental Challenges: The region has a subtropical monsoon climate, with nighttime humidity exceeding 85% year-round, and during the spring rainy season, humidity can reach over 95%. Summer outdoor temperatures can reach 38°C during the day, and although they drop to 28-30°C at night, the enclosure retains heat from sunlight, with internal temperatures measured at a high 42°C before the show starts (7 PM). Additionally, the lake area has many insects, and sand and dust are carried by the lake breeze.
System Response Process:
- Before the Show (6 PM): Staff remotely checked the enclosure status via the RS485 interface. The internal temperature was 42°C, and humidity was 75%.The fan group was already running at full speedfor pre-cooling, but the temperature was dropping slowly.
- Automatic System Upgrade: The T230 control board determined that fan cooling was insufficient to reduce the temperature to a safe range before the show. Itautomatically started the internal air conditioning cooling system. The air conditioner and fans worked together, lowering the internal temperature from 42°C to 29°C within 20 minutes.
- During the Show (8 PM – 10 PM): The projector continuously generated heat, and ambient humidity rose to 92%. The temperature control system entered a dynamic equilibrium: fans ran continuously, and the air conditionercycled its cooling operation intermittentlybased on temperature sensor feedback, stabilizing the temperature in the 26-28°C range. Meanwhile, because humidity was high, theheating module did not activate(the “low temperature + high humidity” condition was not met), avoiding unnecessary energy consumption.
- Emergency Response: There was a brief power outage midway through the show (lasting about 3 seconds). The control motherboard’shardware watchdogensured the system did not crash. After power was restored, the temperature control logic continued to operate. The AC contactor in the power module promptly cut off the projector’s power supply at the moment of outage. After power restoration, the system did not force a restart, requiring manual confirmation, thus protecting the lamp and circuits.
- After the Show (11 PM): The projector was shut down, but the temperature control system did not stop immediately. The fans continued to run for about 10 minutes until sensors indicated the internal temperature had dropped to a safe standby value (<30°C) before automatically stopping, effectively dissipating residual heat.
Project Results: The projector has been operating stably inside this enclosure for two summers, enduring multiple typhoons, rainstorms, and hot, humid weather, without any malfunctions or shutdowns due to temperature or humidity issues. The projector window glass remained clear and fog-free under harsh humidity conditions, ensuring image quality. The customer reported that theintelligent temperature control system’s tiered response and redundant designare key factors guaranteeing the long-term stable operation of their equipment.
5. Comprehensive Abnormal Protection and Expansion Capabilities
The intelligent system also features forward-looking safety designs. The built-inhardware watchdog ensures the control motherboard can automatically reset in case of abnormalities, maintaining normal system operation. The power supply includesreverse connection protection, and the power line for the projector is equipped with an AC contactor. In the event of an internal fault or severe overheating, it instantly trips and cuts off the main power, providing physical-level forced protection.
Furthermore, the system supports RS232/485 communication interfaces, enabling integration into central control systems for remote monitoring and centralized management. Users can alsomanually set the activation temperature thresholds for fans, heating, and air conditioningvia the control board based on actual project requirements, offering high flexibility.
From precise sensor sensing to intelligent motherboard logic decisions, from the coordinated execution of fans, air conditioners, and heating modules, to the final emergency power-off protection, Shenzhen Shirui’s outdoor projector enclosures build a complete and efficient intelligent temperature control ecosystem. It silently “senses” every temperature change of your equipment, using technological power to ensure your projector operates stably and performs brilliantly in any outdoor environment.
Shenzhen Shirui Display Equipment Co., Ltd.— Professional protection, safeguarding every frame of your brilliance.
