Traditional fan-ventilated projector housing suck in salt mist, sand, and dust. Shirui’s fully sealed internal circulation enclosure eliminates all vents . It uses an industrial AC for independent cooling and heating, maintaining constant temperature and humidity. IP65-rated. Ideal for coastal salt spray, desert sandstorms, and subway stations.
Core Design Advantage: Zero Fan + Fully Closed Internal Circulation System
1. No air intake & exhaust holes, complete hermetic sealing
Different from fan-cooled cabinets with ventilation openings, our internal circulation model eliminates all ventilation gaps. No external sand, salt fog, humid air or industrial dust can penetrate into the cabinet, fundamentally avoiding dust accumulation and salt corrosion inside the shell.
- Pure air conditioner independent internal circulation cooling & heating
Equipped with built-in industrial air conditioner as the sole temperature control component without any cooling fans. The air conditioner circulates air inside the fully sealed cabinet to regulate internal temperature and humidity independently, forming an isolated inner air loop separated from outside ambient air.
- Intelligent constant temperature & dehumidification control system
Installed with precision temperature & humidity sensors and T230 intelligent control board. The heating module automatically activates when internal temp below 5℃ and humidity above 90%, stops operation when temperature rises over 10℃ and humidity drops under 65%. The embedded air conditioner auto turns on above 25℃ for constant cooling, all startup parameters support manual customized setting.
2. Premium Cabinet Material & Optical Configuration
- Cabinet shell: Optional galvanized steel, stainless steel or aluminum alloy with 1.2mm~3.0mm thickness, high-temperature electrostatic spray anti-rust coating for corrosion resistance against seaside salt spray and desert high-temperature oxidation.
- Projection window: Ultra-white high-transmittance optical glass with ≥95% light transmittance, no fogging or water condensation thanks to constant humidity control, ensuring stable projector imaging effect.
- Ingress protection: Standard IP65 waterproof & dustproof rating, certified by IP65, EMC and RoHS tests.
3. Three Typical Application Scenarios

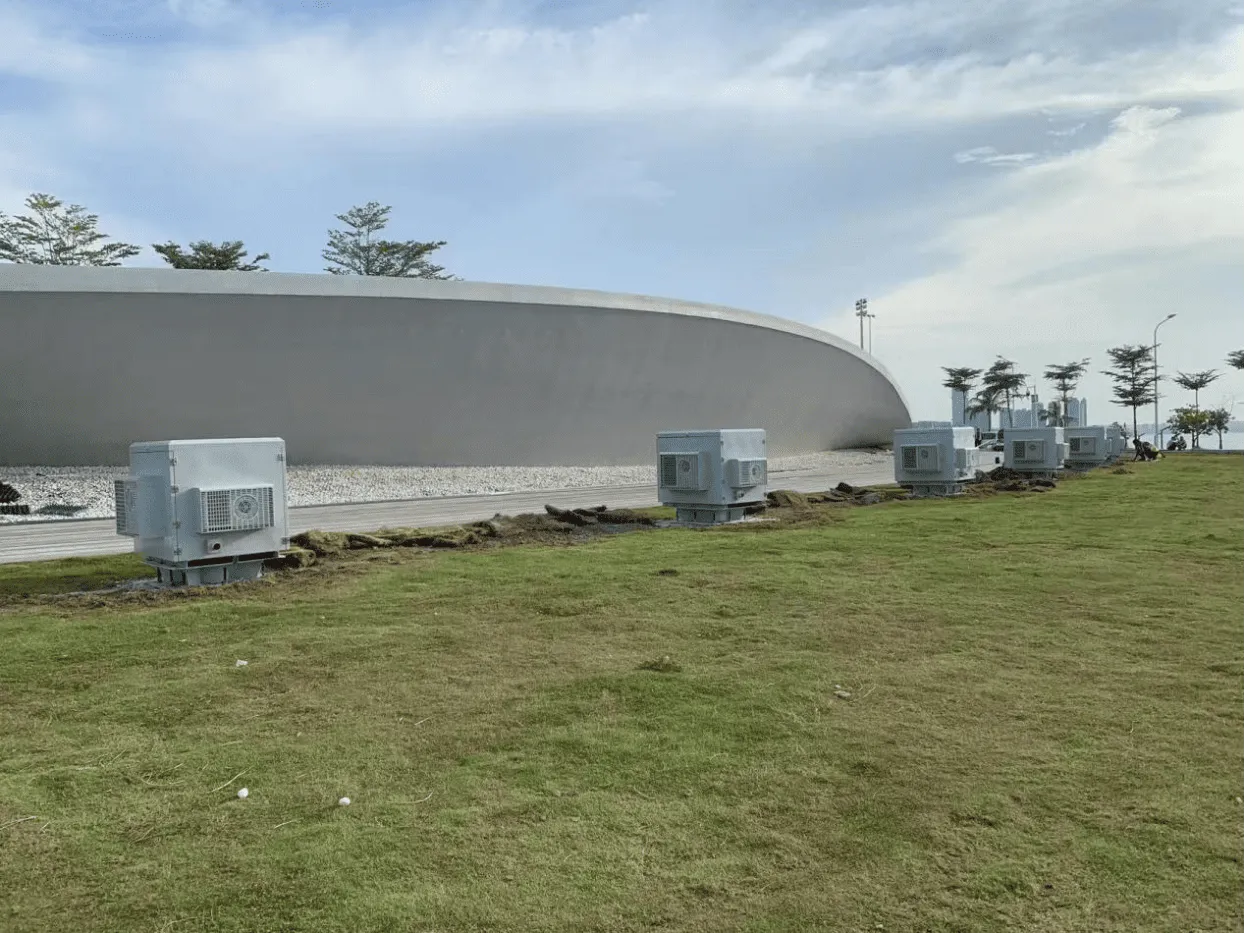

3.1 Coastal Seaside Projects | Real Case: Shenzhen Science and Technology Museum
Coastal areas feature heavy salt fog, high humidity and corrosive sea breeze. Open fan-type cabinets draw salty moisture into interior to corrode projector circuit boards. Our fully sealed fanless enclosure blocks salt mist entirely via closed-loop design, long-term anti-corrosion for waterfront scenic projection, coastal advertising mapping.On-site Project Reference: Shenzhen Science and Technology Museum Outdoor 3D Mapping Show. Located in coastal Shenzhen Bay area with perennial high salt humidity and humid maritime wind, the museum’s iconic spaceship-shaped facade hosts large-scale nightly outdoor 3D mapping projection to present science-themed light shows all year round. After field test comparison, our fan-free fully sealed internal circulation cabinets were selected for all exterior projectors. Total airtight structure stops coastal salt fog and humid sea wind from invading the cabinet; built-in independent air conditioner stably maintains constant inner temperature and humidity, eliminating lens fogging and circuit corrosion troubles that plagued traditional fan cabinets. The projection system runs smoothly throughout rainy seasons and typhoon periods along South China coast.
2. High-Dust Desert Environment | Real Case: Yotkan Ancient City, Hotan Xinjiang
Desert regions suffer frequent sandstorms and sharp temperature swings between day and night. Vent holes of fan cabinets lead to massive sand ingress and internal component abrasion. Zero-hole internal circulation structure keeps fine desert sand outside completely, constant temperature prevents overheating under blazing sunshine and low-temperature damage at night.

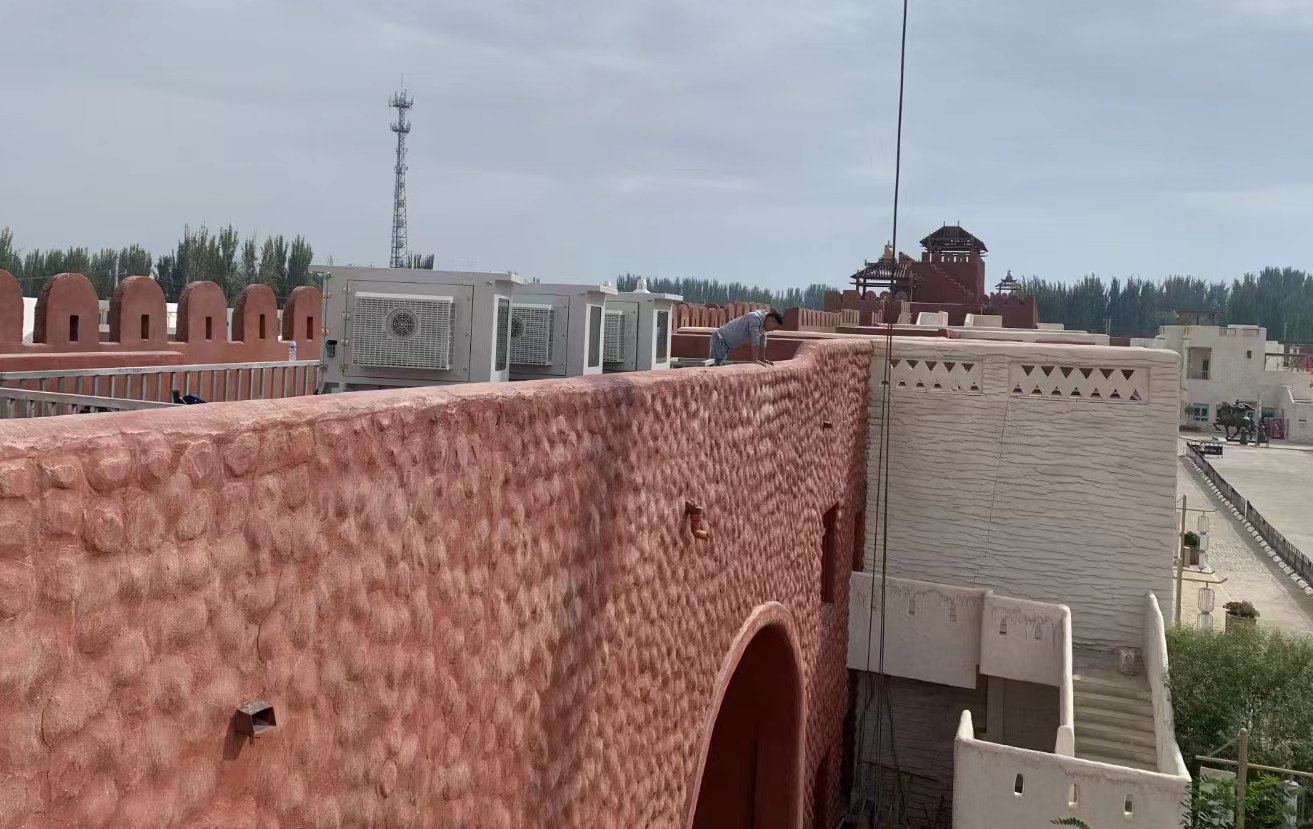

On-site Project Reference: Yotkan Ancient City Night Immersive Show “Music in Yutian”
Sitting on the southern edge of Taklamakan Desert, Hotan Yotkan Ancient City endures frequent spring and autumn sandstorms, drastic day-night temperature gap up to over 30℃ all year round. The landmark all-scene immersive night performance relies on distributed architectural projection covering ancient city walls and folk streets. All onsite projectors adopt Shirui fanless internal circulation enclosures: fully sealed design blocks floating fine desert sand during sandstorms; independent built-in air conditioner solves ultrahigh daytime heat under desert strong sunlight and nighttime freezing temperature issues, securing nonstop stable projection operation for year-round scenic nighttime performances.
3. 3 Underground Subway Stations
Subway space has dense floating dust, high underground humidity and poor natural ventilation. Conventional ventilated enclosures accumulate subway dust rapidly inside. Totally airtight design avoids dust contamination of lens and projector core parts, perfect for subway digital art projection and immersive display engineering.
Extra Customization & Intelligent Control Features
- Multi-angle adjustable projector base: Up-down 30° & left-right 15° adjustment range, customized size, appearance shape and pull-out structure available for easy projector maintenance.
- Remote control access: Reserved RS232/RS485 interface to realize centralized remote monitoring of cabinet internal temperature and humidity.
- Complete safety configuration: Built-in smoke detection, water ingress sensing modules and overload protection power supply, AC contactor auto power-off when abnormal for full projector safety protection.
FAQ
Q1: What environments is the internal circulation fanless projector cabinet suitable for?
A1: Perfect for seaside salt fog zones, sandstorm-prone desert areas and dusty underground subway stations. Proven in Shenzhen Science Museum coastal project and Hotan Yotkan Ancient City desert project.
Q2: No cooling fans, how does the cabinet control temperature?
A2: Fully sealed body without air vents, relying on built-in industrial air conditioner for independent inner air circulation to realize cooling, heating and dehumidification.
Q3: What’s the protection rating of this sealed projector enclosure?
A3: Standard IP65 waterproof and dustproof grade, passed EMC & RoHS certification.
Q4: Does the fanless internal circulation cabinet support customization?
A4: Yes, customizable size, shape, pull-out structure and mounting angle; OEM service is available.
Q5: Can the cabinet connect to central control system?
A5: Equipped with RS232/485 port to realize remote real-time temperature & humidity monitoring.
About Shirui Display
Founded in 2012, Shenzhen Shirui Display Equipment Co., Ltd specializes in R&D and production of outdoor projector enclosure, constant temperature & humidity cabinet and sheet metal customization. Our fanless internal circulation air-conditioned projector housing is mature industrial-grade product widely adopted in global tourism projection, urban night show, underground commercial display projects, supporting OEM & personalized customization worldwide.
