Enclosure Material: Galvanized Steel, Aluminum, 304 Stainless Steel

For outdoor projector enclosures, communication cabinets, EV charger housings, and digital signage boxes, material choice directly affects durability, protection, and lifespan. The most common options—galvanized steel, aluminum alloy, and 304 stainless steel—each offer different advantages in corrosion resistance, strength, weight, heat dissipation, cost, and manufacturability.

Galvanized Steel

Galvanized steel is the most widely used material for outdoor enclosures. Its excellent cost‑performance ratio and mature processing technology make it the first choice for most standard cabinets and budget‑sensitive projects.

Advantages

• Lowest cost– Cheap material, mature processing. First choice for budget‑sensitive projects.
• Good strength– Tensile strength 300–500 MPa, similar to stainless steel. Sturdy construction.
• Easy to work– Cutting, stamping, bending, and welding are straightforward with standard equipment.
• Basic protection from zinc coating– Hot‑dip galvanized layer provides 5–10 years of rust prevention in dry environments.

Disadvantages

• Moderate corrosion resistance– Once the zinc layer is damaged (scratches, drill edges),the underlying steel rusts. In humid or salt‑spray conditions, lifespan drops significantly.
• Poor appearance– Low surface gloss. May darken or develop white rust over time. Usually requires a top coat.
• Heavy weight– Density ~7.85 g/cm³, similar to stainless steel.
• Average thermal performance– Thermal conductivity ~50 W/(m·K), between aluminum and stainless steel.

Best for

• Indoor or dry‑climate enclosures.
• Temporary projects or cost‑sensitive bulk purchases.
• Outdoor cabinets with proper paint coating.

Aluminum Alloy

Advantages

• Lightweight– Density ~2.70 g/cm³, one‑third the weight of steel. Ideal for wall‑mount, pole‑mount, or elevated installations.
• Excellent thermal performance– Thermal conductivity ~200 W/(m·K), far better than steel. Suitable for enclosures with heat‑generating devices (projectors, power supplies).
• Good corrosion resistance– Naturally forms an oxide layer. Rust‑resistant in normal atmospheres, though less than stainless steel in salt spray.
• Easy to work– Can be extruded, cut, drilled, and welded (TIG). Can be anodized in various colors.

Disadvantages

• Lower strength– Typical tensile strength 200–300 MPa. Not ideal for very large or heavy‑duty cabinets.
• Limited corrosion resistance– In coastal or strong acid/alkali environments, the oxide layer may break down, requiring additional coating.
• Medium cost– More expensive than galvanized steel, cheaper than stainless steel.
• Welded zone strength loss– May require post‑weld heat treatment.

Best for

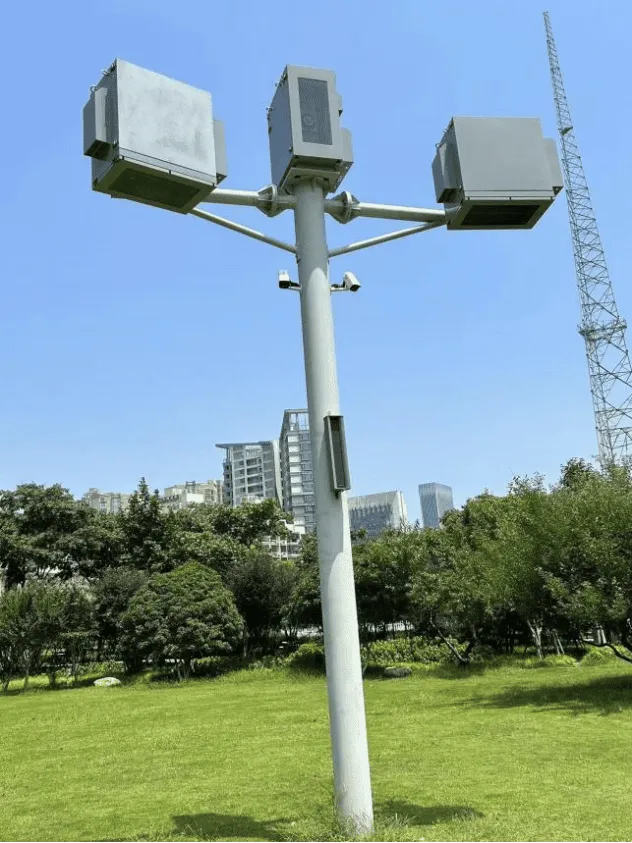

• Lightweight outdoor enclosures (e.g., digital signs on light poles).
• Applications with high heat dissipation needs (projector constant‑temperature cabinets).
• General outdoor use in non‑aggressive environments.

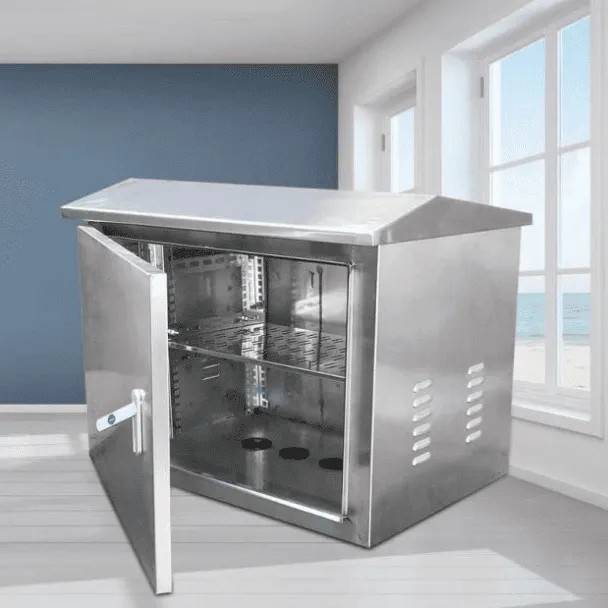

304 Stainless Steel

Advantages

• Excellent corrosion resistance– Contains 18% chromium and 8% nickel. Performs well in humid, salt‑spray, and acidic environments. Ideal for coastal areas, chemical plants, and long‑term outdoor exposure.
• High mechanical strength– Tensile strength 500–700 MPa. Resists impact and deformation. Suitable for large or heavy‑load cabinets.
• Good temperature stability– Remains stable from -196°C to 800°C. Resists cracking from thermal cycling.
• Attractive appearance– Bright silver‑white finish without painting. Easy to clean.

Disadvantages

• High cost– Material price is 3–5 times that of galvanized steel. Fabrication is also more expensive.
• Heavy weight– Density ~7.93 g/cm³, about 2.8 times heavier than aluminum. Increases shipping and installation costs.
• Difficult to work– Cutting and welding require specialized equipment. Post‑weld pickling and passivation are needed to restore corrosion resistance.

Best for

• Coastal outdoor projector enclosures.
• Communication base stations in chemical industrial zones.
• Hygienic equipment for food and pharmaceutical industries.
• High‑end permanent installations.

Comparison Summary Table

Property	Galvanized Steel (Most Common)	Aluminum Alloy	304 Stainless Steel
Density (g/cm³)	7.85	2.70	7.93
Tensile strength (MPa)	300-500	200-300	500-700
Corrosion resistance	★★☆	★★★☆	★★★★★
Thermal performance	★★★	★★★★★	★★
Weight	Heavy	Light	Heavy
Cost	Low	Medium	High
Workability	Easy	Easy	Difficult
Appearance	Needs paint	Anodizable	Bright silver

How to Choose?

• Tight budget and dry environment→ Choose galvanized steelwith proper painting. Best value and the default choice for most projects.
• Lightweight or high heat dissipation needed→ Choose aluminum alloy, especially for wall‑mounted or pole‑mounted projector enclosures.
• Coastal, high‑humidity, or chemical plant environments→ Prefer304 stainless steel. Higher upfront cost, but long‑term maintenance‑free.

There is no absolute “best” material – only the right one for your specific project. Remember that sealing design, paint quality, and installation details are just as important as the material itself.

ShiRui’s Solution

Shenzhen ShiRui Display Equipment Co., Ltd.offers custom outdoor enclosures in all three materials. Based on your installation environment (coastal, industrial, high altitude, urban street) and budget, we recommend the most suitable material and surface treatment. Whether you need the cost‑effective and commonly used galvanized steel, the lightweight and thermally efficient aluminum, or the permanent corrosion resistance of 304 stainless steel, ShiRui can manufacture it. Contact us for a free material selection guide.
